3.5 inch 320x480 Portrait MIPI TFT LCD Module with PCAP Touch

Product Categories
Aison Technology (HK) Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3.5 inch 320x480 Portrait MIPI TFT LCD Module with PCAP Touch

Brand Name : AISON

Model Number : Z035HV19-CT

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 200k/month

Delivery Time : 7 working days

Packaging Details : Carton/Blister

Name : 3.5 inch Portrait MIPI TFT LCD Module

Resolution : 320x480

Outline dimension : 54.86*83.43*4.1mm

Active area : 48.96 x 73.44mm

Interface : MIPI

Brightness : 200 cd/m2

Display mode : TFT,Normally White

Driver IC : ST7365P

Operating temperatures : -20 to 70 degree

Storage temperatures : -30 to 80 degree

Contact Now

3.5 inch Portrait 320x480 IPS TFT LCD Module MCU/RGB Interface

Display General Description

Z035HV19-CT is a 3.5-inch TFT LCD module with an TN panel with Capacitive touch screen. This module is integrated with the ST7365P driver IC, supporting MIPI interfaces,with a typical brightness of 200 nits and a contrast ratio of 500:1.

This 3.5 inch 320x480 display MIPI TFT LCD, providing a clear and crisp visual experience for various applications.

The 3.5'' IPS panel is with a typical range of Left: 65°, Right: 55°, Up: 65°, and Down: 65°,IPS viewing is optional. The Z035HV19-CT can operate in temperatures ranging from -20℃ to +70℃, and its storage temperature range is from -30℃ to +80℃.

General Data

Product Name 3.5 inch Portrait LCD Module
Number of Pixel 320x480
Interface MIPI
Luminance(cd/m2) 200 cd/m2
Active area 48.96 x 73.44mm
LCM (W x H x D) 54.86*83.43*4.1mm
Viewing Direction(eye) 12 o'clock
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

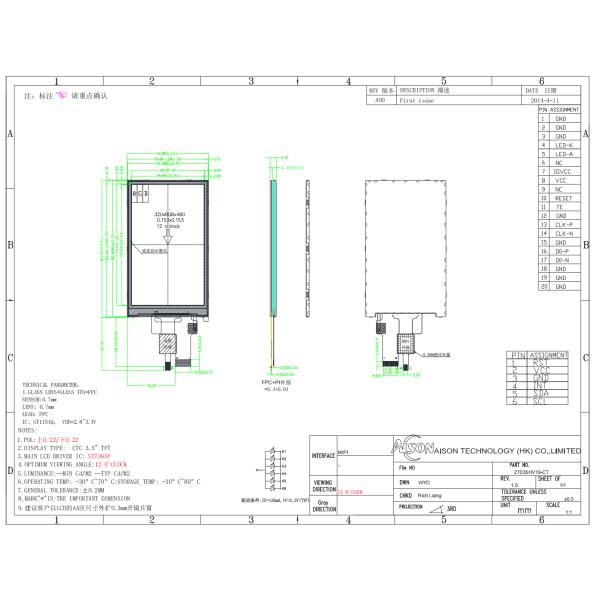

Drawing
3.5 inch 320x480 Portrait MIPI TFT LCD Module with PCAP Touch3.5 inch 320x480 Portrait MIPI TFT LCD Module with PCAP Touch

TFT Applications

Overall, Z035HV19-CT is a versatile and high-performance display screen that is suitable for a wide range of applications, including industrial control systems, home automation, and portable electronics.

3.5 inch 320x480 Portrait MIPI TFT LCD Module with PCAP Touch


Product Tags:

PCAP Touch MIPI TFT LCD Module



320x480 Portrait MIPI TFT LCD Module



3.5 inch MIPI TFT LCD Module


Quality 3.5 inch 320x480 Portrait MIPI TFT LCD Module with PCAP Touch for sale

3.5 inch 320x480 Portrait MIPI TFT LCD Module with PCAP Touch Images
